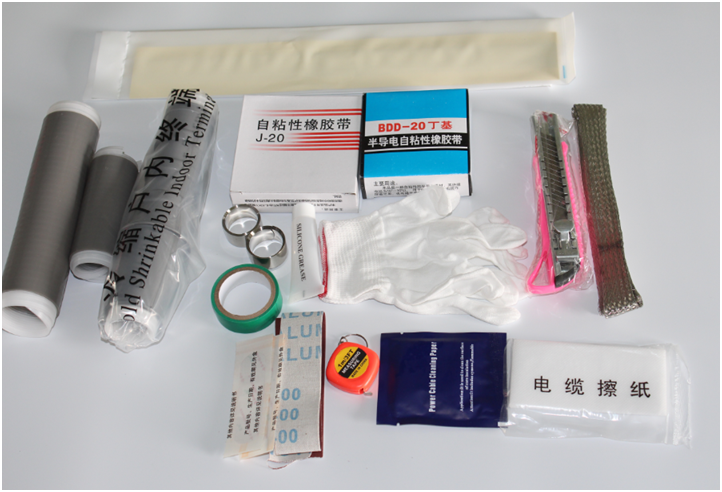

Application:
NRSY-10 series apply to 6/10KV,8.7/15KV crosslinked cable indoor termination
WRSY-10 series apply to 6/10KV,8.715KV crosslinked cable outdoor termination
Features:
a) Made of liquid silicone rubber, With anti-tear, anti-electric marks, corrosion resistance, excellent electrical properties
b) Stress control and insulation as a whole, effectively avoid the gap between the layers to reduce the installation steps
c) The high elasticity of silicone rubber can effectively avoid the shortcomings caused by the respiratory effects of the cable
d) With constant force springs,no welding
e) Using red, yellow and green three-color sealed tube, phase identification obvious
f) No need to fire, easy to install, safe and reliable
Property
|
Product Model |
Property |
Standard requirements |
Test result |
|
1 |
1min Power frequency voltage test |
45KV,1min, no flashover and no breakdown |
|
|
2 |
Partial discharge test |
13Kv, Discharge capacity≤20PC |
|
|
3 |
Constant voltage load cycling test in air |
The voltage and conductor temperature are heated to 95℃~100℃,8 hours per cycles, total 3cycle,heat 5hours and cooling 3hours,No breakdown, no flash |
Approved |
|
4 |
impact voltage test |
105Kv,10times of the positive and the negativerespectively, No breakdown, no flash |
|
|
5 |
15 minutes negative polarity dc voltage test |
-52kv,15 min, No breakdown, no flash |
Approved |
|
6 |
4 hours Power frequency voltage test |
35KV,4h , no flashover and no breakdown |
|
|
7 |
Salt spray test for outdoor cable terminal |
11KV,1000h,no trip, No visible damage |
Approved |
|
8 |
Humidity test for for indoor cable terminal |
11KV,300h,no trip, No visible damage |
Approved |
Specification:
|
Item |
Description of goods |
Specification |
Applicable Section(mm2) |
|
Single core |
indoor cable terminal |
NRSY-10/1x0 |
10-16 |
|
indoor cable terminal |
NRSY-10/1x1 |
25-50 |
|
|
NRSY-10/1x2 |
70-120 |
||
|
indoor cable terminal |
NRSY-10/1x3 |
150-240 |
|
|
indoor cable terminal |
NRSY-10/1x4 |
300-400 |
|
|
indoor cable terminal |
NRSY-10/1x5 |
500-630 |
|
|
Outdoor cable terminal |
WRSY -10/1x0 |
10-16 |
|
|
Outdoor cable terminal |
WRSY -10/1x1 |
25-50 |
|
|
Outdoor cable terminal |
WRSY -10/1x2 |
70-120 |
|
|
Outdoor cable terminal |
WRSY -10/1x3 |
150-240 |
|
|
Outdoor cable terminal |
WRSY -10/1x4 |
300-400 |
|
|
Outdoor cable terminal |
WRSY -10/1x5 |
500-630 |
|
|
Threecore |
indoor cable terminal |
NRSY-10/3x0 |
10-16 |
|
indoor cable terminal |
NRSY-10/3x1 |
25-50 |
|
|
indoor cable terminal |
NRSY-10/3x2 |
70-120 |
|
|
indoor cable terminal |
NRSY-10/3x3 |
150-240 |
|
|
indoor cable terminal |
NRSY-10/3x4 |
300-400 |
|
|
Outdoor cable terminal |
WRSY -10/3x0 |
10-16 |
|
|
Outdoor cable terminal |
WRSY -10/3x1 |
25-50 |
|
|
Outdoor cable terminal |
WRSY -10/3x2 |
70-120 |
|
|
Outdoor cable terminal |
WRSY -10/3x3 |
150-240 |
|
|
Outdoor cable terminal |
WRSY -10/3x4 |
300-400 |
